Single input class A output stage produced from '57 to '60

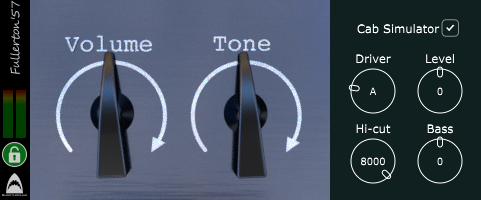

Single input in to volume and tone control. The power amp is a class A design with only one pentode valve and negative feedback. Very low distortion design until that output valve starts hitting the stops.

Click to enlarge
